阻燃等级

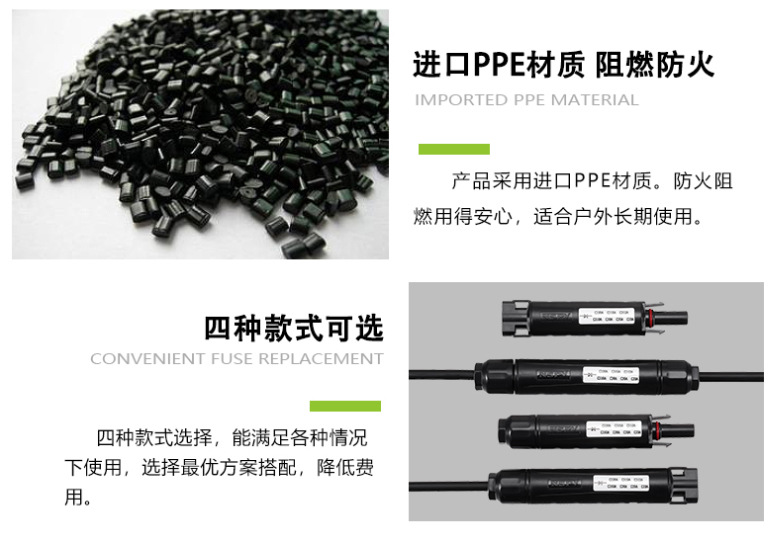

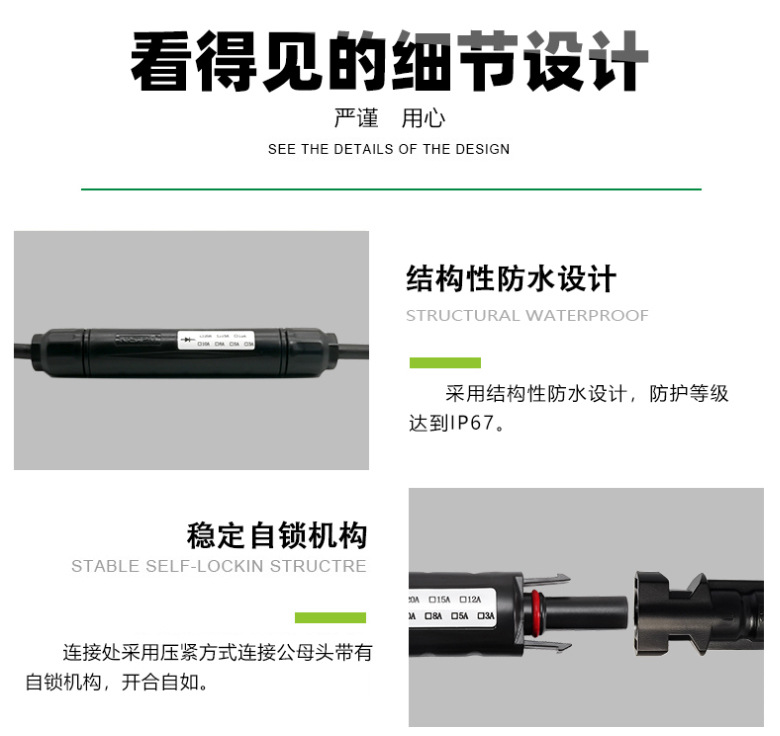

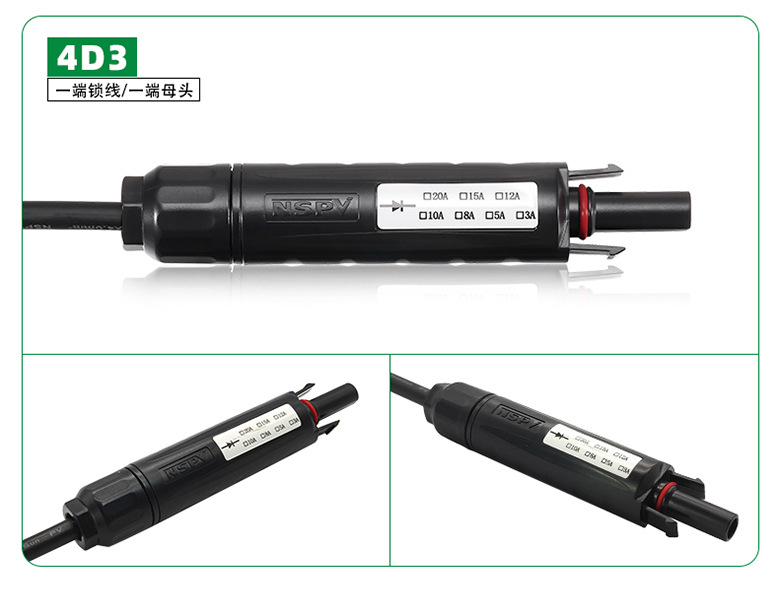

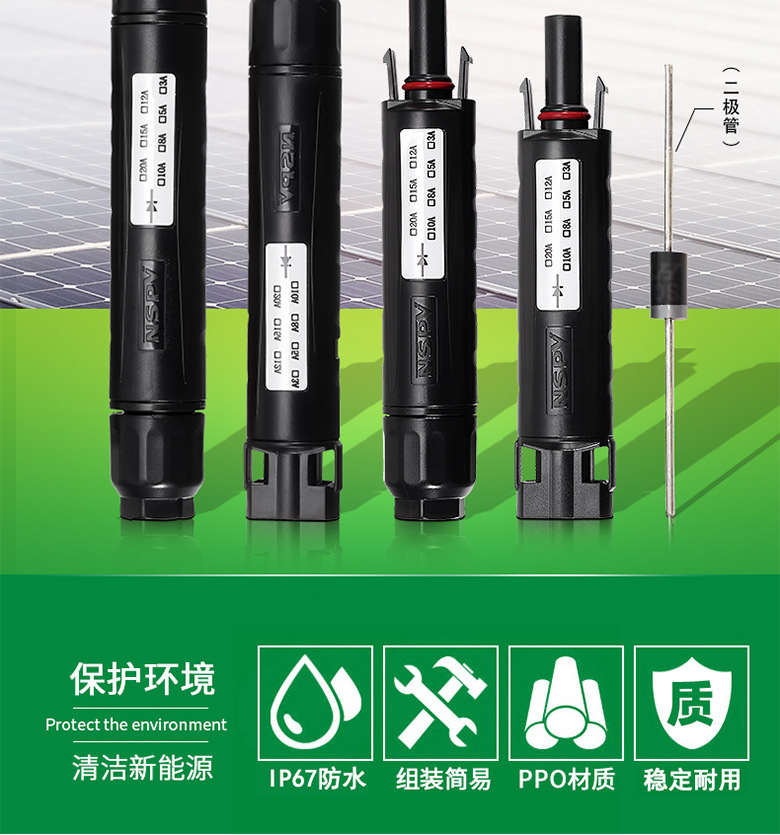

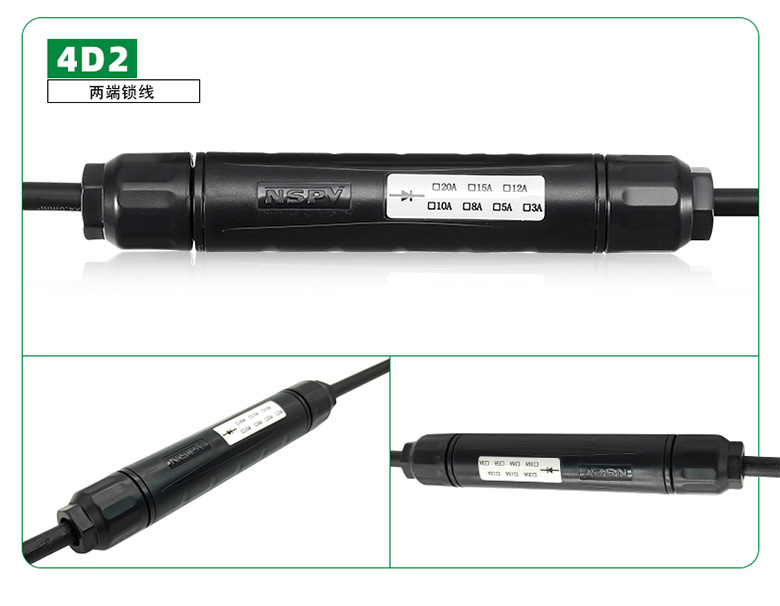

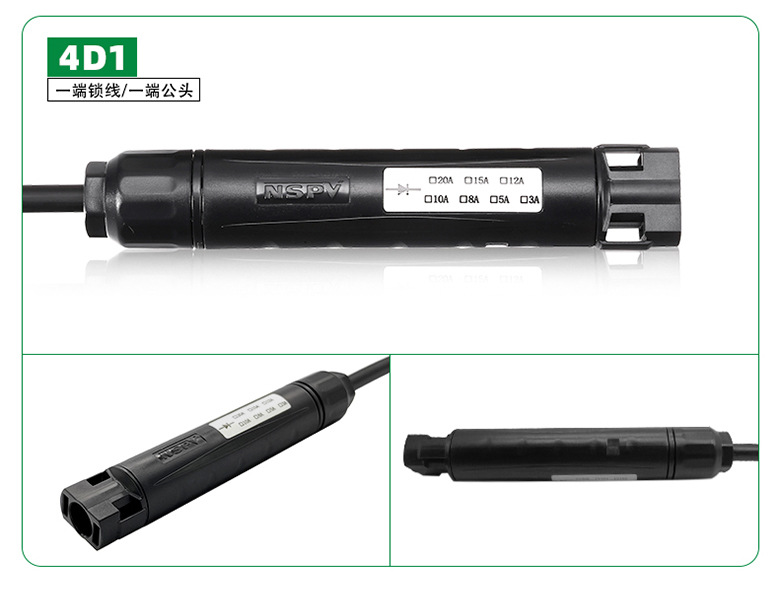

Flame classUL94-V0图示：Drawing:金属导体材料Contact material铜,镀锡Copper,Tin plated连接方式Connecting system压接Crimp connection保护等级Degree of protectionIP67螺帽锁紧力Nut cap locking force1.5-1.8Nm测试电压Test voltage6kV(50Hz,Imin)环境温度范围Ambient temperature range-40℃…+85℃(IEC）连接器接触电阻Typical contact resistance≤0.25 mΩ温度上限Upper limiting temperature110℃(IEC)额定电流（不含二极管）Rated current（Without diode）30A安全等级Safety degreeII额定电压Rated voltage1000VDC插入力/拔出力Insertion force/Withdrawal force≤50N / ≥50N额定电流(含二极管）Rated current（With Diode)10A（Diode RatedCurrent 15A)光伏4.0二极管连接器PV 4.0 Diode Connector产品规格Product Specifications绝缘材料Insulation materialPPE/PA过压等级Overvoltage category/Pollution degreeCATIII/24D04D14D24D3支持定制电线长度.Support customize the cable length.*建议***高使用环境温度为75摄氏度，且在75-85摄氏度下使用不能超过8小时.*Recommended that the Max ambient temperature is 75℃，and not exceed 8 hours in 75-85℃.
