| 技术参数: | ||||||
| Technical data: | ||||||
| 额定电流(A) | 额定电压(V) | 分断 | Toal I2t-value | @DC | 功耗(W) | |
| Pre-arc=I2t-value(A2S) | ||||||
| Rated Current (A) | Rated Voltage (V) | Breaking capacity | 1500V(A2S) | Power Loss(W) | ||
| 2 | 1500 | 20kA@1500V | 3.56 | 9.72 | 2.45 | |
| 3 | 1500 | 20kA@1500V | 27 | 50.1 | 1.48 | |
| 3.5 | 1500 | 20kA@1500V | 32 | 53.8 | 1.53 | |
| 4 | 1500 | 20kA@1500V | 37.5 | 57.5 | 1.58 | |
| 5 | 1500 | 20kA@1500V | 44.6 | 60.2 | 1.64 | |
| 6 | 1500 | 20kA@1500V | 50 | 63 | 2.19 | |
| 8 | 1500 | 20kA@1500V | 69.2 | 68.6 | 2.5 | |
| 10 | 1500 | 20kA@1500V | 87.5 | 74.5 | 3.2 | |
| 12 | 1500 | 20kA@1500V | 106.8 | 168.6 | 3.4 | |
| 15 | 1500 | 20kA@1500V | 132 | 301 | 3.7 | |
| 16 | 1500 | 20kA@1500V | 142 | 312 | 3.9 | |
| 20 | 1500 | 20kA@1500V | 172.6 | 341.8 | 4.3 | |
| 25 | 1500 | 20kA@1500V | 214 | 382 | 4.8 | |
| 30 | 1500 | 20kA@1500V | 256 | 423 | 5.2 | |
| 32 | 1500 | 20KA@1500V | 270 | 443 | 8.85 | |
| 40 | 1500 | 20KA@1500V | 350 | 650 | 12.67 | |
| 50 | 1500 | 20KA@1500V | 470 | 800 | 13.65 | |

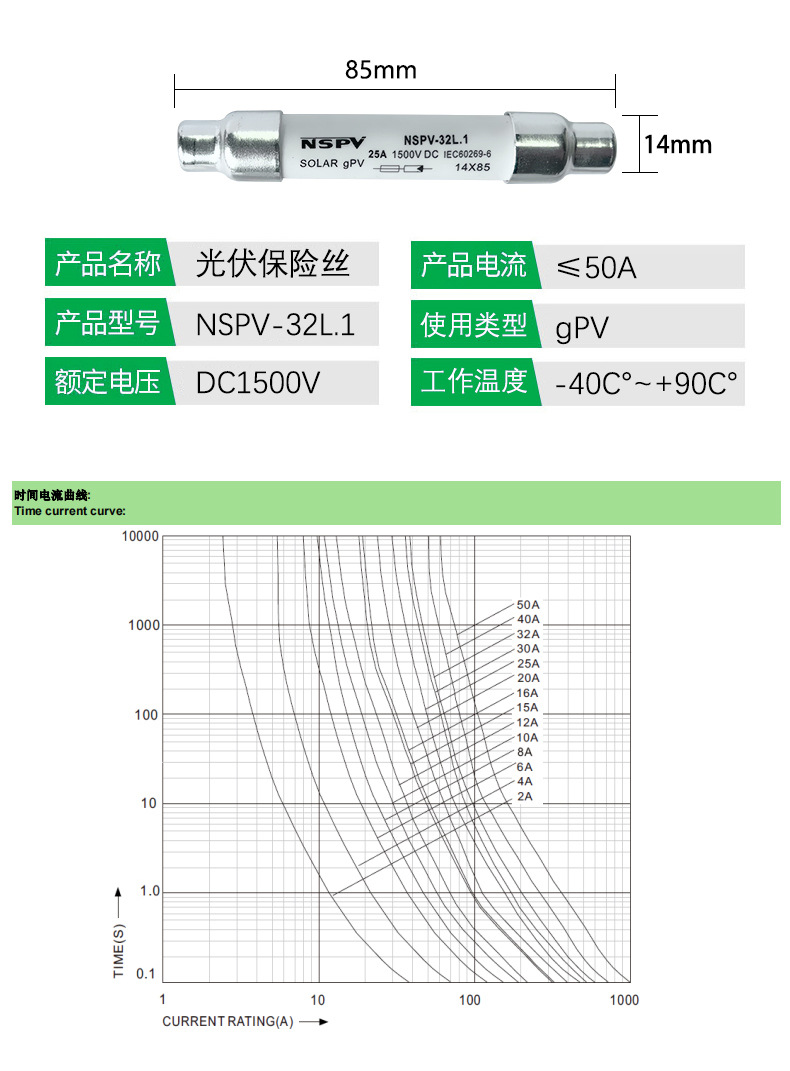

| 时间电流曲线: | ||||||
| Time current curve: |

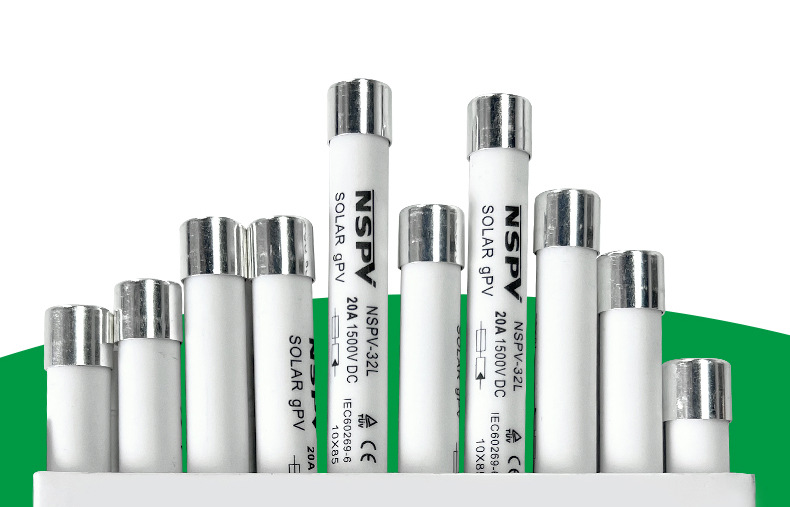

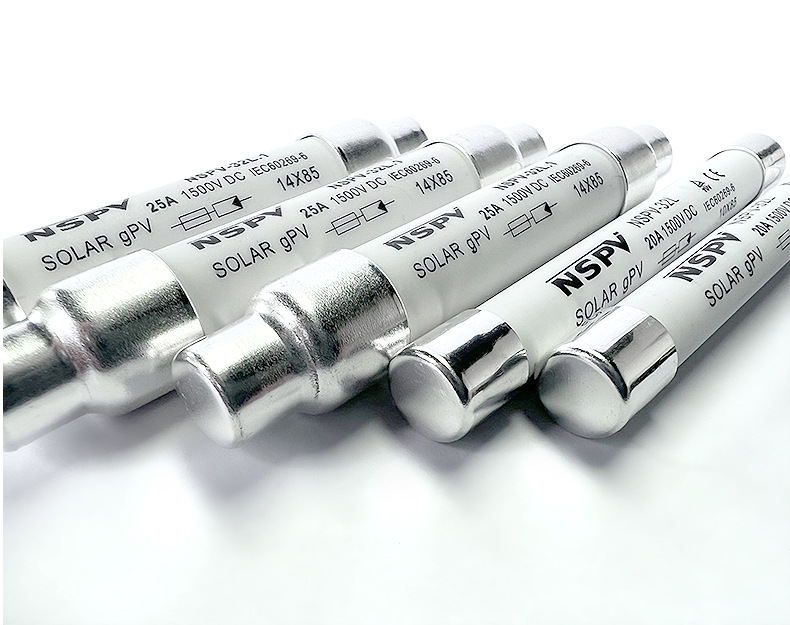

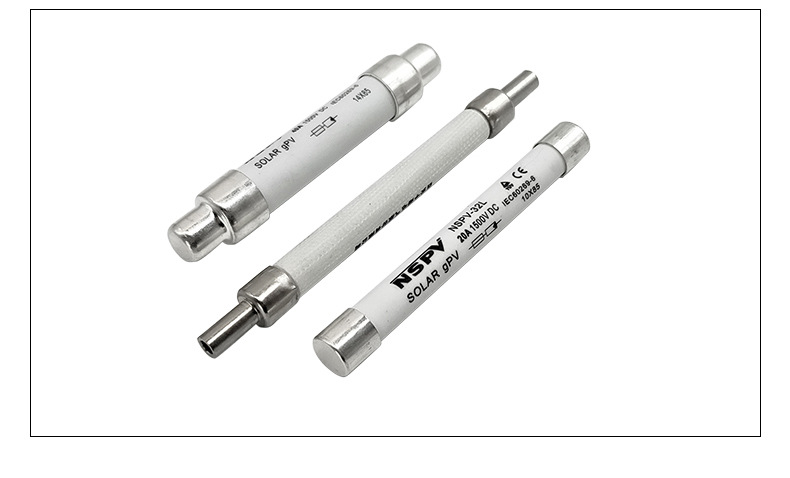

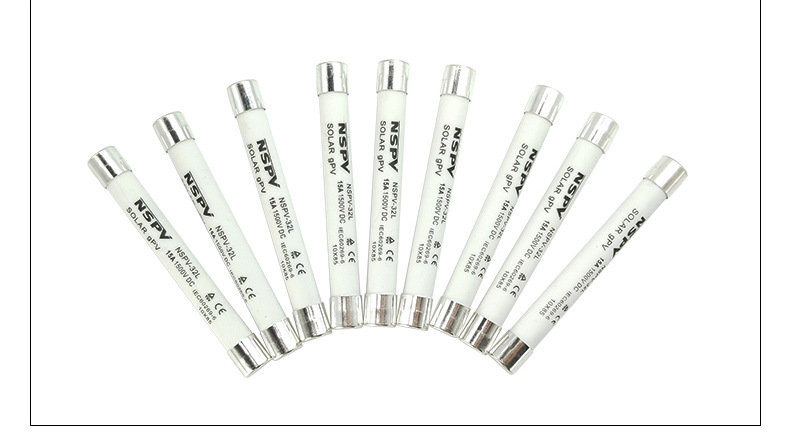

| 太阳能（PV）发电保护用1500VDC熔断器 | ||||||
| Solar(PV) Power Protection 1500VDC Fuse | ||||||
| 产品规格 | ||||||
| Product Specifications | ||||||

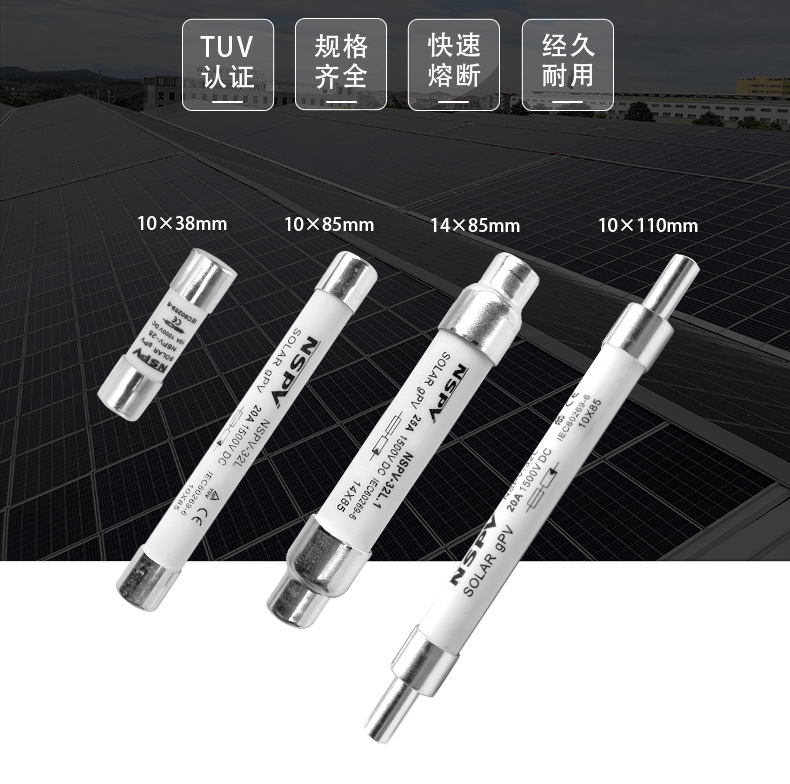

| 型号/尺寸 | NSPV-32L/10*85 | 额定电压 | ||||
| 1500VDC | ||||||
| Model/size | NSPV-32L.1/10/14*85 | Rated voltage | ||||
| 使用类别 | 分断能力 | |||||
| gPV | 20KA | |||||
| Classes | Breaking capaclty | |||||
| 额定电流 | 2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A, | 工作温度 | ||||
| -40C°~+90C° | ||||||
| Rated current | 20A,25A,30A,32A,40A,50A | The working temperature | ||||
| 安装地点 | 海拔不超过2000m | 储存温度 | ||||
| -40C°~+90C° | ||||||
| The installation site | The altitude does not exceed 2000m | The storage temperature | ||||
| 储存湿度 | 参考标准 | IEC60269-1/GB13539-1 | ||||
| ≤90% | ||||||
| The storage humidity | Reference the standard | IEC60269-6/GB13539-6 | ||||
| 额定脉冲电压 | 安装方式 | 保险丝座或保险丝连接器 | ||||
| 1575V | ||||||

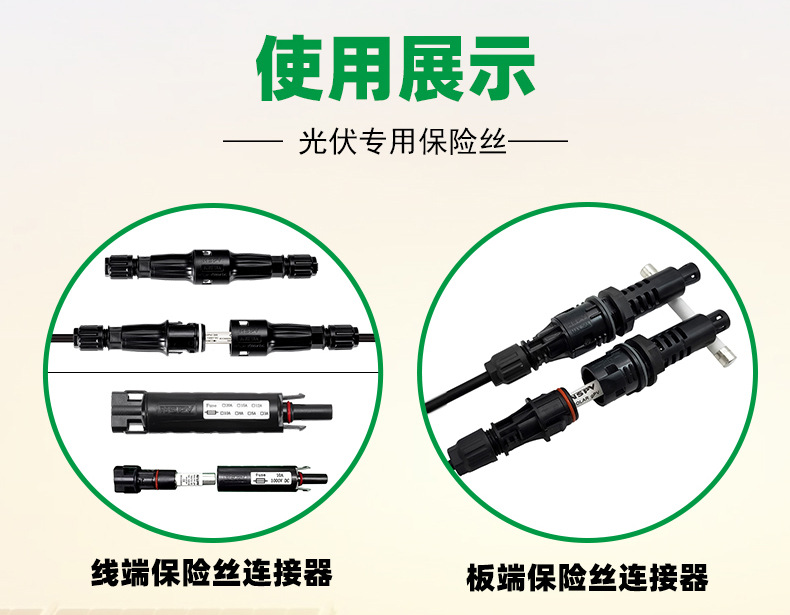

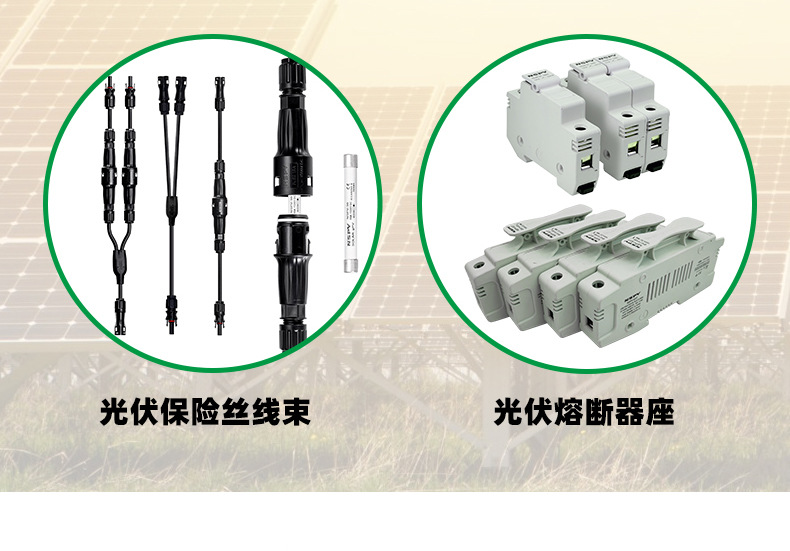

| Rated Impulse voltage | Installaction method | Fuse holder or fuse connector | ||||

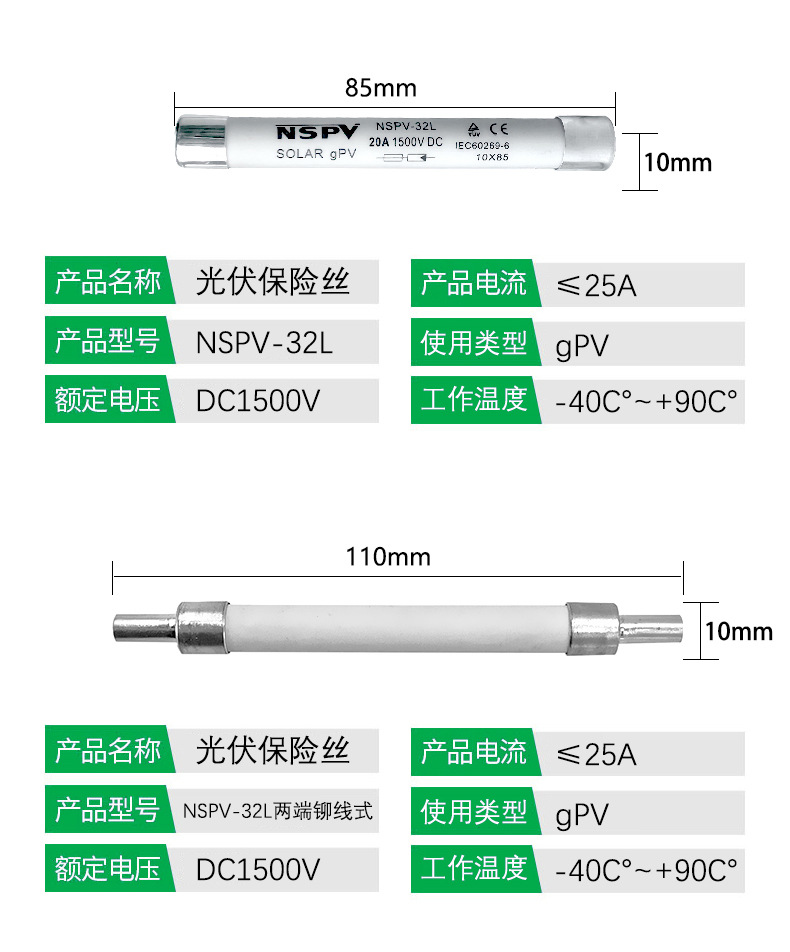

| 外形尺寸 | ||||||
| Overall size: | ||||||
| 2-20A | NSPV-32L | |||||
| 25-50A | NSPV-32L.1 |
