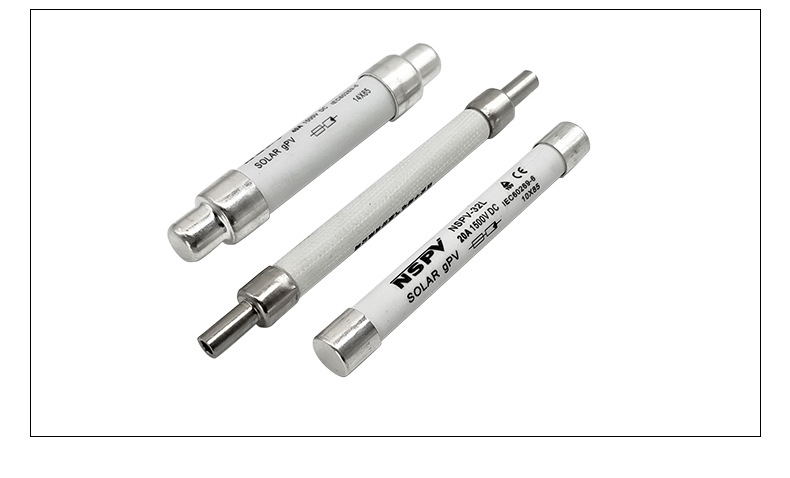

| 太阳能（PV）发电保护用1500VDC熔断器 | ||||||
| Solar(PV) Power Protection 1500VDC Fuse | ||||||
| 产品规格 | ||||||
| Product Specifications | ||||||
| 型号/尺寸 | NSPV-32L/10*85 | 额定电压 | ||||
| 1500VDC | ||||||
| Model/size | NSPV-32L.1/10/14*85 | Rated voltage | ||||
| 使用类别 | 分断能力 | |||||
| gPV | 20KA | |||||
| Classes | Breaking capaclty | |||||
| 额定电流 | 2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A, | 工作温度 | ||||
| -40C°~+90C° | ||||||
| Rated current | 20A,25A,30A,32A,40A,50A | The working temperature | ||||
| 安装地点 | 海拔不超过2000m | 储存温度 | ||||
| -40C°~+90C° | ||||||
| The installation site | The altitude does not exceed 2000m | The storage temperature | ||||
| 储存湿度 | 参考标准 | IEC60269-1/GB13539-1 | ||||
| ≤90% | ||||||
| The storage humidity | Reference the standard | IEC60269-6/GB13539-6 | ||||

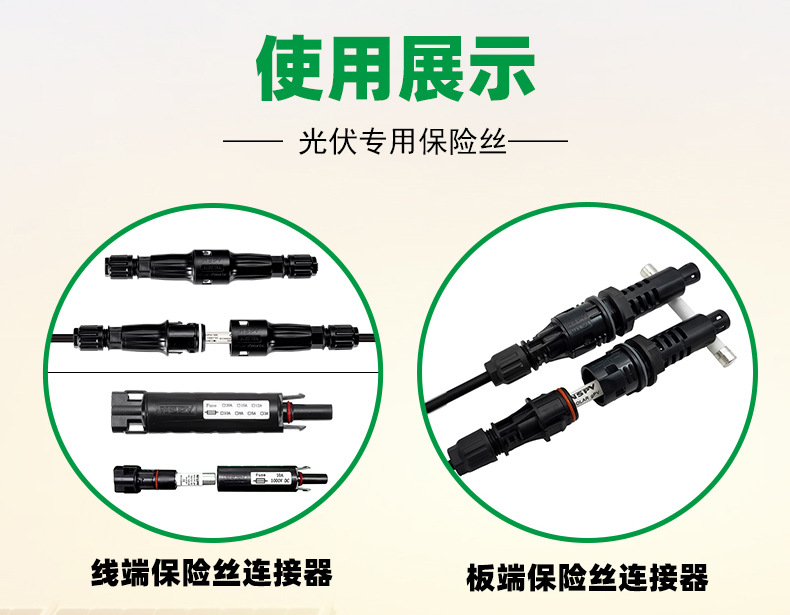

| 额定脉冲电压 | 安装方式 | 保险丝座或保险丝连接器 | ||||
| 1575V | ||||||
| Rated Impulse voltage | Installaction method | Fuse holder or fuse connector | ||||

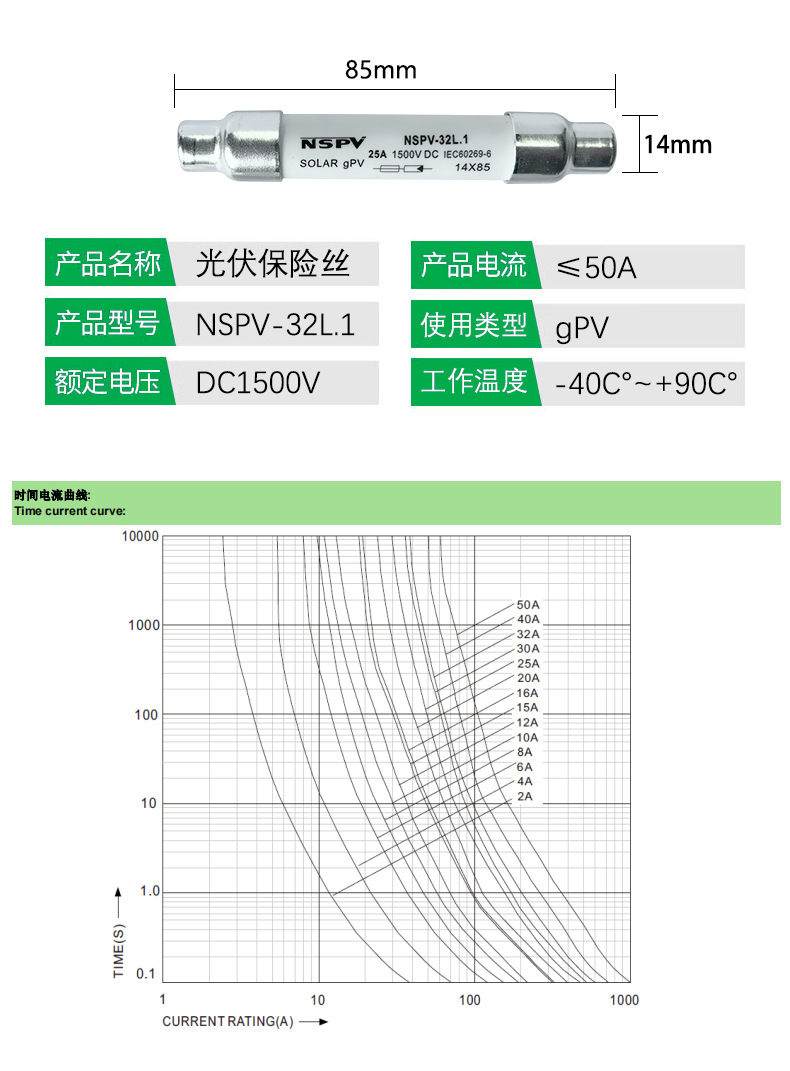

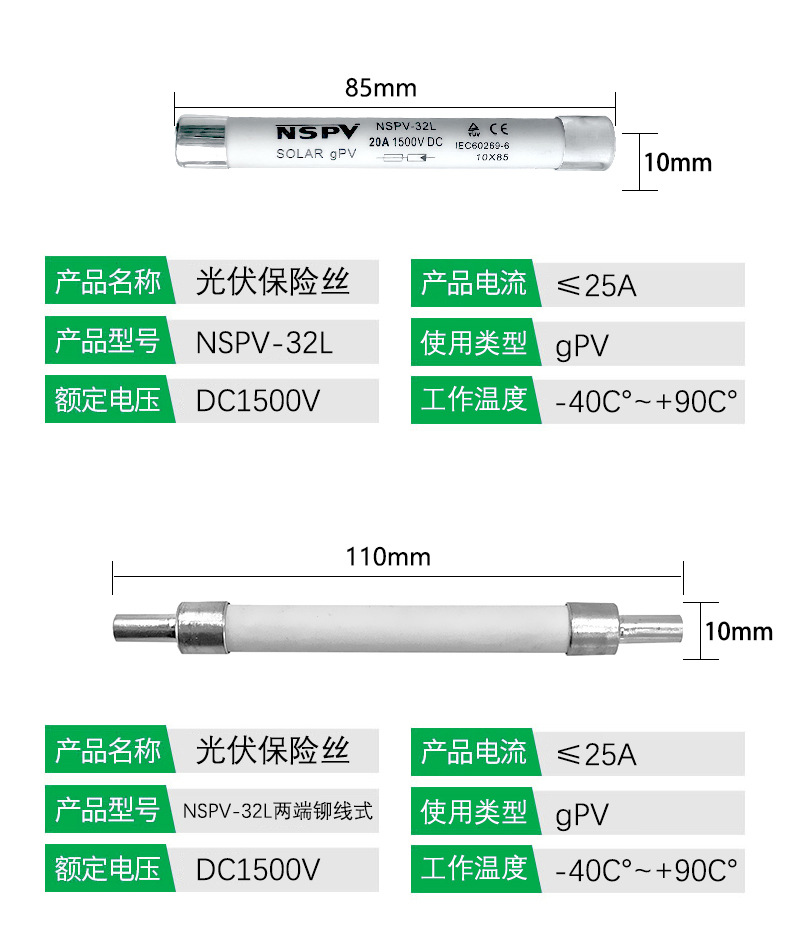

| 外形尺寸 | ||||||
| Overall size: | ||||||
| 2-20A | NSPV-32L | |||||
| 25-50A | NSPV-32L.1 |
