| 规格参数/特性 | SEM-215SB204 | SEM-220SB204 | SEM-225SB204 | SEM-230SB204 | SEM-235SB204 |
| ***大功率(Pm) | 215.0W | 220.0W | 225.0W | 230.0W | 235.0W |
| 功率公差 | ±3% | ±3% | ±3% | ±3% | ±3% |
| 电压(Vmp) | 29.1V | 29.1V | 29.1V | 29.1V | 29.1V |
| 电流(Imp) | 7.39A | 7.56A | 7.73A | 7.9A | 8.07A |
| 开路电压(Voc) | 36.2V | 36.2V | 36.2V | 36.2V | 36.2V |
| 短路电流(Isc) | 8.13A | 8.32A | 8.5A | 8.69A | 8.87A |
| 工作/运行/操作温度 | -40℃to+85℃ | -40℃to+85℃ | -40℃to+85℃ | -40℃to+85℃ | -40℃to+85℃ |
| ***高系统电压 | 1000V | 1000V | 1000V | 1000V | 1000V |
| ***大系列保险丝额定值 | 15A | 15A | 15A | 15A | 15A |
| 标准试验条件 | 辐射度 1000W/㎡,组件温度 25℃,AM=1.5 | ||||
| 机械 规格参数/特性 | |||||

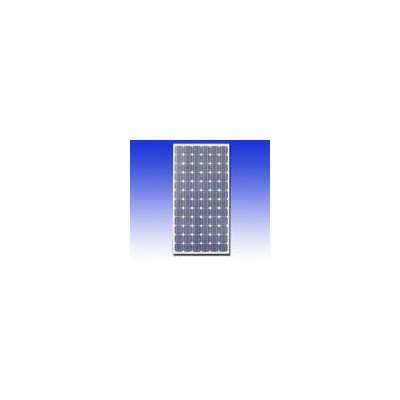

| 晶片:单晶硅晶片 156×156mm(6inch) | |||||
| 晶片连接数量:60=6×10pcs | |||||
| 组件尺寸:1640×992×50mm(64.5×39×2inch) | |||||
| 重量:24.5kg | |||||
| 接线盒:Ip65 rated | |||||
| 包装尺寸:2Pcs/CTN,1670×1020×120mm(65.7×40.1×4.7inch) | |||||
| 保证: Pm is not less than 90% in 10 years and 80% in 25 years | |||||
| 抵抗力:227g stell ball fall down from 1m height and 60m/s wind | |||||
| 工作温度系数 | |||||
| Noct:48℃±2℃ | |||||
| 一般温度系数:0.06±0.01%/K | |||||
| 电压温度系数:-(78±10)MV/K | |||||
| 功率温度系数:-(0.5±0.05)%/K | |||||
| 产品标准:Module certified to CE,ICE 61215 IEC61730 | |||||
