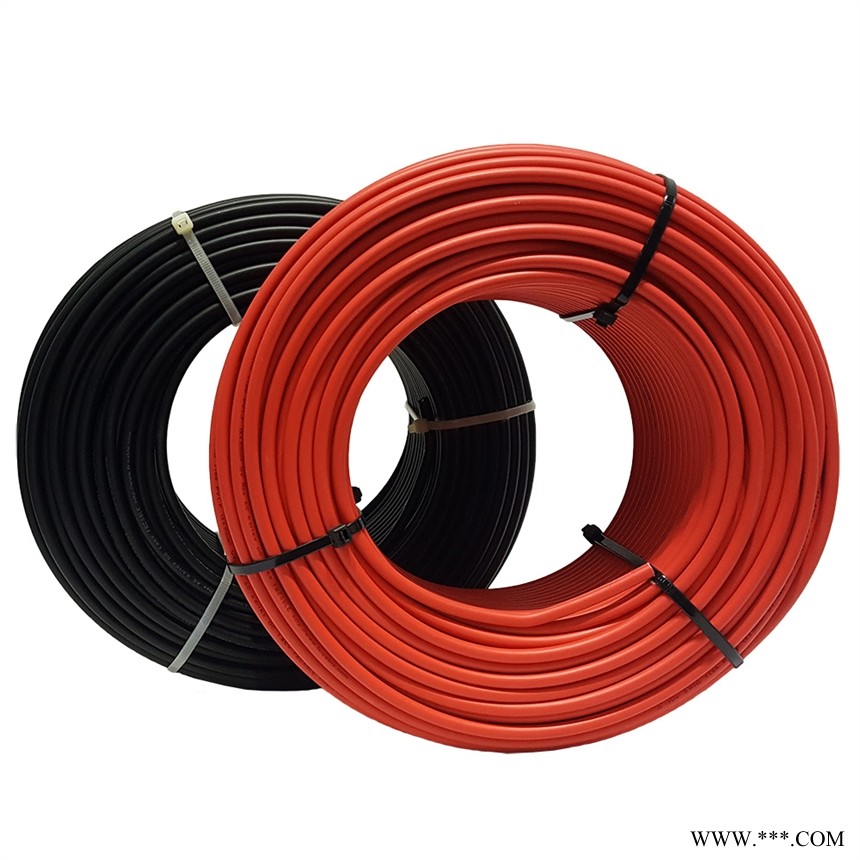

TUV认证光伏发电设备用无卤电缆
一、产品说明Product Description
太阳能光伏发电设备用无卤电缆，是根据光伏发电设备所处的特殊环境条件设计的，主要适用于直流电压端，发电设备的引出连接和组件间汇流连接，***高电压DC1.8kV的光伏发电设备系统。
Halogen-free cable for solar photovoltaic generating equipment is designed according to the special environment conditions of photovoltaic generating equipment. It is mainly applicable to the direct voltage, derivate links of generating equipment, confluence connection between components and the generating equipment system of DC1.8kV (highest voltage).
二、型号及名称
Model型号 | 名称Name |
2Pfg1169 | 光伏设备用无卤电缆 Halogen-free cable for solar photovoltaic generating equipment |
Model and Name
Model | Name |
2Pfg1169 | Halogen-free cable for solar photovoltaic generating equipment |
三、产品特性
环境温度：-40~90℃；
***高线温：125℃；
绝缘电阻：20℃时≥1014 Ω.cm, 90℃时≥1011Ω.cm;
额定电压：UO/U=600V AC,1800V DC；
测试电压：6500V 50HZ/5min；
弯曲半径：≥5D；
高温下使用不熔融，不流动；
通过单根垂直燃烧测试IEC60811-2-1；
耐热、耐寒、耐磨、抗紫外线、耐臭氧、耐水解；
具有较高的机械密度、防水、耐油、耐化学药品；
使用寿命长达25年。
Features
Environmental temperature: -40~90℃;
The maximum line temperature:125℃;
Insulation resistance:20℃≥1014 Ω.cm, 90℃≥1011Ω.cm;
Rated voltage:UO/U=600V AC, 1800V DC;
Test voltage:6500V 50HZ/5min;
Bending radius:≥5D;
NO melting, no flowing under high temperature;
Through single vertical flame test IEC60811-2-1;
Heat resistance, cold resistance, abrasion resistance, anti-ultraviolet ray, ozone-resisting and hydrolysis resistance;
With high mechanical density, waterproof, oil resistance and chemicals resistant;
Service life is 25 year.
