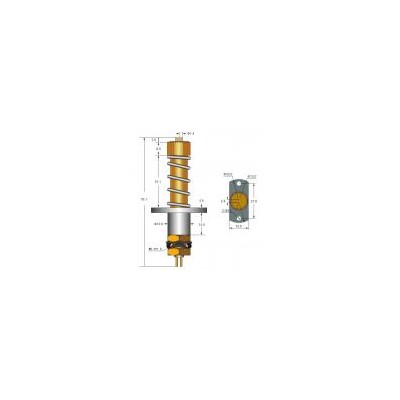

Specifications current rating/额定电流：40A-60A DC contact resistance/电阻特性：0.5mΩ MAX Electro-Needle Elasticity/电流针弹力：4.0Kgf-12.0Kgf Voltage Needle Elasticity/电压针弹力：0.22Kgf-0.5Kgf max.travel/***大行程：12.0mm Installation hole diameter/安装孔直径：Φ13.1～13.3mm Installation plate thickness/安装板厚度：6.0～11.5mm Suitable for temperature /适合温度：-40℃～+150℃
Materials and plating Current needle: be-cu，Nickel and gold plating 电流针：铍铜，镀镍镀金 Voltage needle: bronze，Nickel and gold plating 电压针：磷铜，镀镍镀金 Sleeve: Match steel 套筒：赛钢 spring: music wire,Plate with nickel 弹簧：琴钢线、镀镍 Nut: brass，Plate with nickel 螺母：黄铜，镀镍
