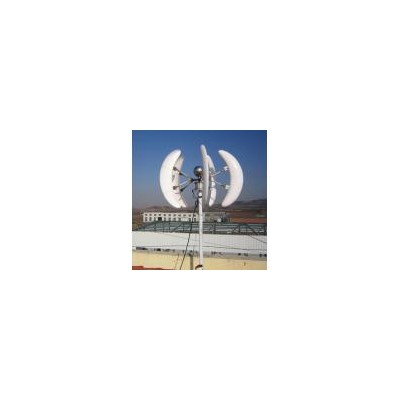

600W垂直轴风力发电机组(YF-V-600)

加工定制 是 品牌 逸凡 型号 YF-V-600

额定功率 600（W） 输出电压 24（V） 风轮直径 1.6（m）

叶片数目 5片 额定风速 8（m/s）

diameter of wind wheel 1.2m

material of blades Fiberglass-Reinforced Plastics

blades number 5

blades length 1000mm

RPM 180(r/min)

rated wind speed 8-9m/s

start up wind speed 2m/s

working wind speed 3-25(m/s)

security wind speed 40m/s

generator style 3-phase AC PM

protection grade of generator IP54

material of generator case cast iron

rated power 600W

the max power 650W

rated voltage (DC) 12V/24V

the height of tower 6m

guy cable tower type(mm) ∮75*3

controller and inverter advanced wind & solar hybrid controller and pure sine wave inverter

battery reference 12V100ah, 2pcs
